Power and Precision: The Expanding Role of Pockels Cells in Laser and Electro-Optic Systems
Technical
In the evolving world of photonics and laser engineering, precision, speed, and control aren’t just desirable, they are essential. At the heart of many of today’s most advanced optical systems is a deceptively small but powerful component: the Pockels cell.
At G&H (LON:GHH), we engineer high-performance Pockels cells and larger aperture Pockels cells that deliver the speed, precision, and reliability demanded by modern photonics. Whether used in medical devices, industrial micromachining, or advanced research like inertial fusion energy (IFE), Pockels cells are vital for managing light with nanosecond accuracy. As laser applications grow in complexity, understanding the capabilities and system integration of these electro-optic devices is more important than ever.
Whether you’re isolating pulses in a high-repetition-rate laser or shaping beams for fusion energy, Pockels cells offer unparalleled electro-optic switching capabilities. As laser applications become more diverse and demanding, understanding how these devices work, and how they can be optimized, is key to system performance.
What Exactly Is a Pockels Cell?
Named after the German physicist Friedrich Pockels who studied the effect in 1893, a Pockels cell exploits the Pockels effect — a linear change in a crystal’s refractive index in response to an applied electric field. When placed between two polarizers, the crystal (typically made from materials like KD*P, BBO, or RTP) can modulate the polarization and intensity of light at nanosecond speeds.
This high-speed optical modulation is central to applications such as:
- Laser Q-switching - where the cell controls the timing of energy release
- Pulse picking - to extract individual pulses from a mode-locked laser system
- Electro-optic modulation - modulating amplitude, phase, or polarization of light, allowing real-time control of light’s properties
- Medical and aesthetic lasers - for surgical precision and safety
- Laser micromachining - requiring fast, repeatable control
- Quantum optics, scientific instrumentation and inertial fusion energy (IFE) - for beam steering and control where timing and beam shaping are critical for energy delivery and plasma uniformity
Why Pockels Cells Are Gaining Ground
Pockels cells aren’t new, but their performance characteristics, material advancements, and integration options have expanded dramatically in recent years. Their ability to switch in under 10 nanoseconds, withstand high damage thresholds, and operate across a wide wavelength range (from UV to IR) makes them indispensable in systems where optical switching must be both precise and robust.
For example, in laser micromachining, Pockels cells ensure exact pulse delivery for features measured in microns. In the medical sector, they enable safe, repeatable energy application in dermatology and ophthalmology. And in IFE, one of the most promising clean energy frontiers, they control the distribution and timing of laser energy onto fuel pellets, influencing fusion yield and system efficiency.
Designing with Performance in Mind

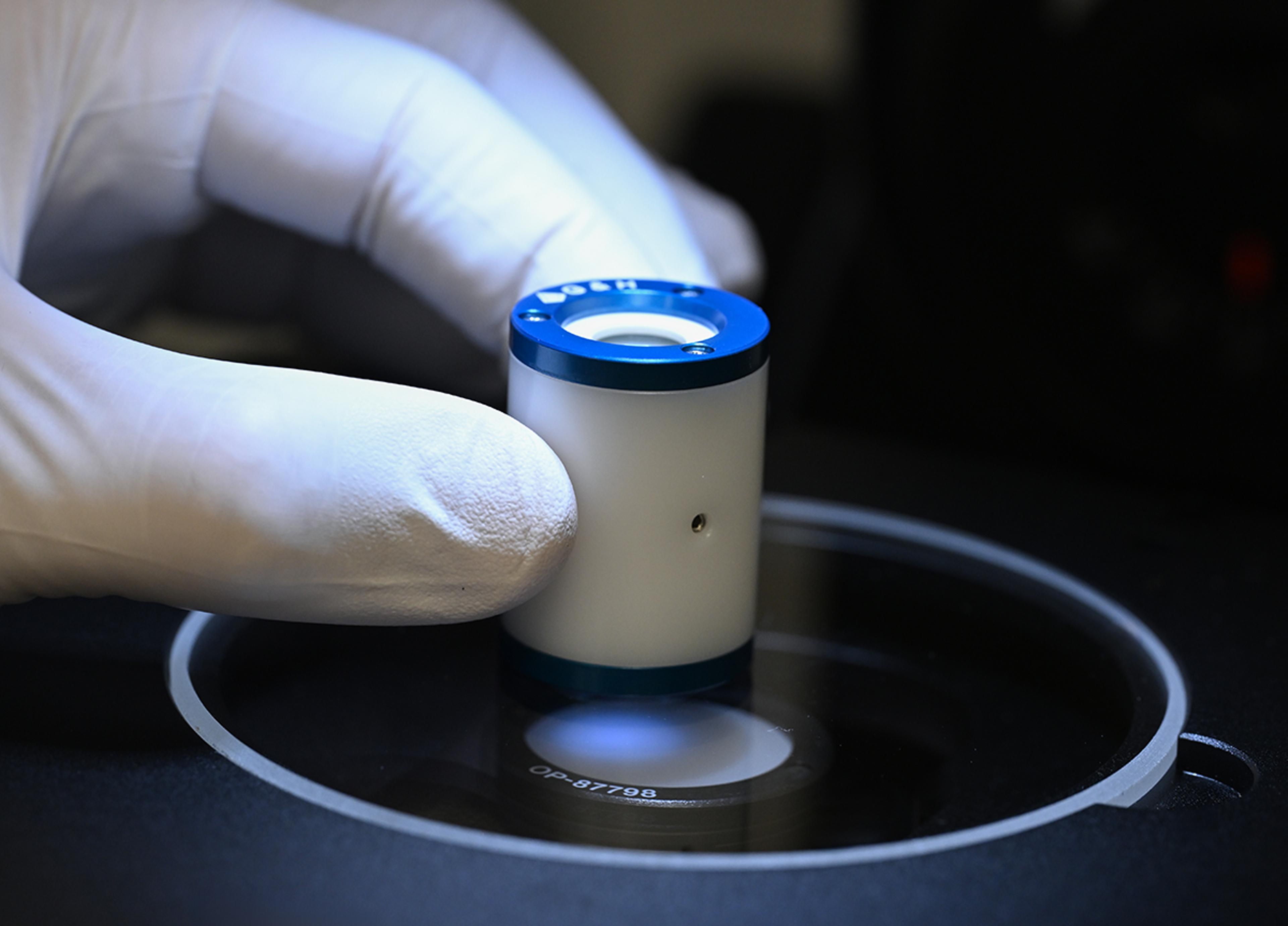

G&H Pockels cells are engineered to meet the stringent demands of today’s laser systems, with clear apertures ranging from 3 to 25 mm and higher, repetition rates up to 100 kHz, and contrast ratios exceeding 8000:1. In some advanced applications, clear apertures of 24 mm or larger are required, these are highly specialized and typically used in high-energy laser systems, large beam manipulation, or inertial fusion research, where extreme optical power handling and beam uniformity are critical.
When specifying a Pockels cell, several performance factors should be carefully considered:
- Wavelength compatibility
- Switching time and response speed
- Damage threshold under peak and average power
- Thermal stability in high-duty-cycle environments
- Electrical isolation and driver integration
The choice of electro-optic crystal is equally crucial:
- KD*P (Potassium Dideuterium Phosphate) - a long-established material, ideal for high-power applications and available in large-aperture formats.
- RTP (Rubidium Titanyl Phosphate) - offers superior thermal stability and is non-hygroscopic, making it well-suited for robust environments.
- BBO (Beta Barium Borate) - supports a wide transparency range including UV, though it is sensitive to humidity and requires environmental control.
Understanding how these parameters interact ensures the Pockels cell is properly matched to the laser architecture and application, whether for precision micromachining or next-generation fusion experiments.
G&H’s Contribution to Electro-Optic Innovation

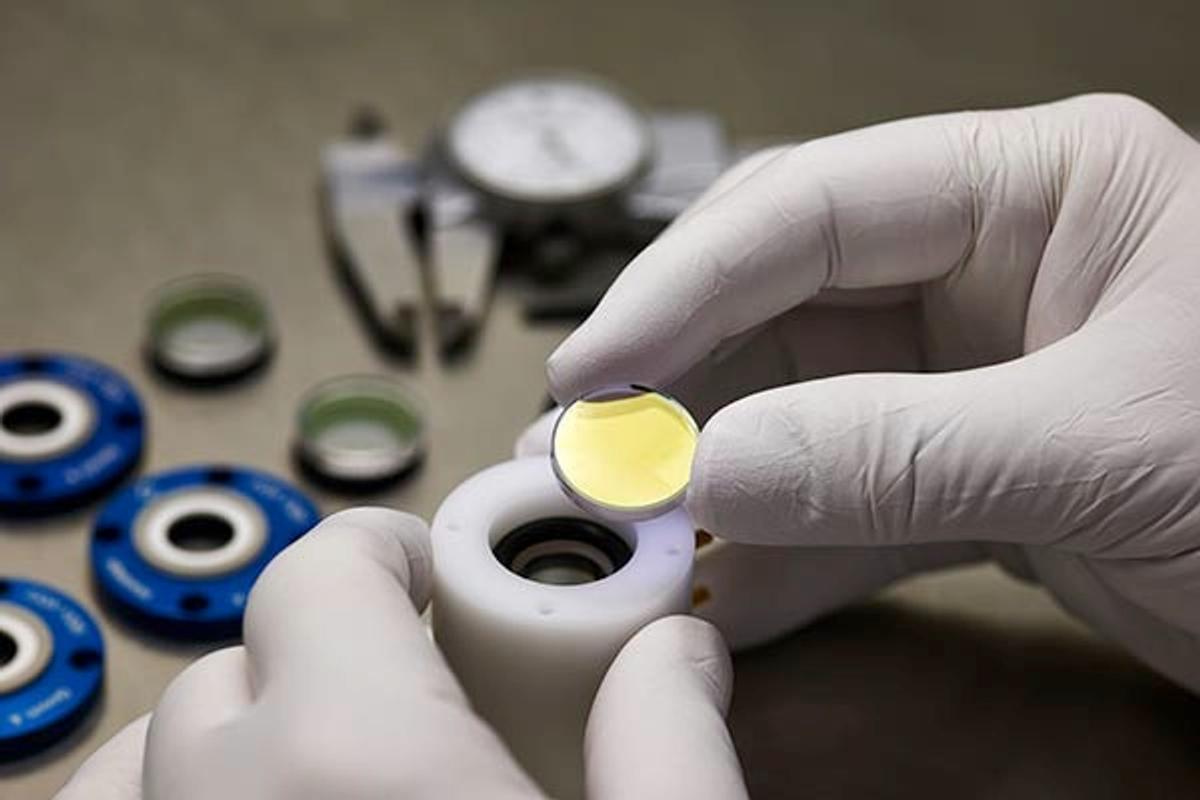

At Gooch & Housego (G&H), we’ve been manufacturing high-performance Pockels cells and electro-optic components for decades. Our expertise in crystal growth, device design, and laser integration has made us a trusted partner for OEMs and research labs around the world, including those pushing the boundaries of laser-driven fusion.
What sets us apart:
- Vertically integrated manufacturing, including US-grown crystals
- Large aperture Pockels cells including 24 mm or larger (TX Pockels up to 99mm)

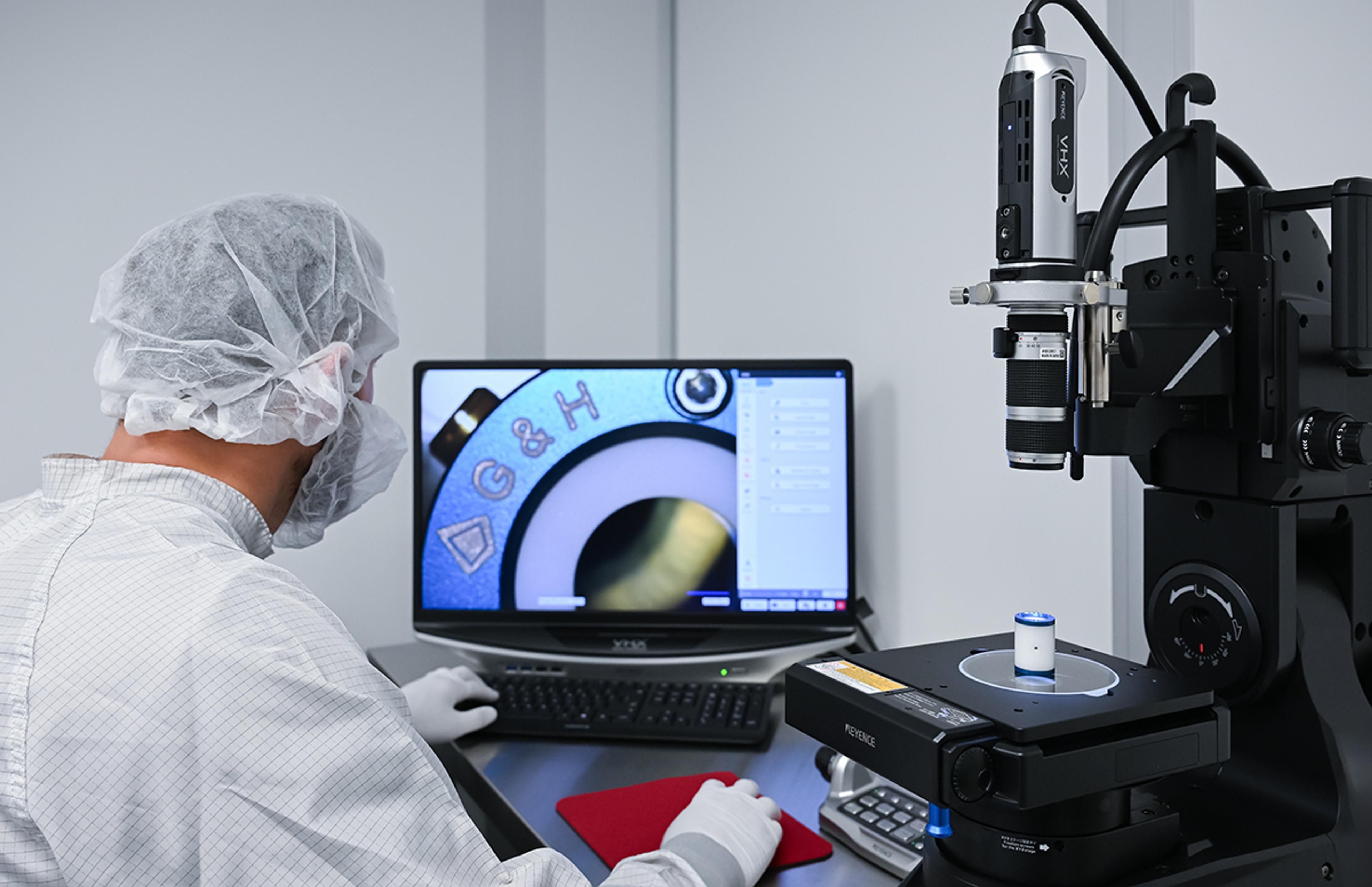

- In-house metrology and testing, ensuring optical and electrical precision
- Custom engineering and rapid protoyping available, including large-aperture cells and driver-matched systems
- Proven field reliability in medical, defense, industrial laser systems, and scientific environments
The Road Ahead: Fusion, Quantum, and Beyond
As the photonics industry accelerates toward fusion energy, quantum communication, and next-gen laser platforms, the role of electro-optic modulators like Pockels cells will only grow.
Their ability to control light with nanosecond precision is foundational to new technologies where photons do the work once reserved for electrons. The demand for faster, cleaner, more scalable systems will drive continued innovation in electro-optics — and G&H is committed to supporting those breakthroughs.
